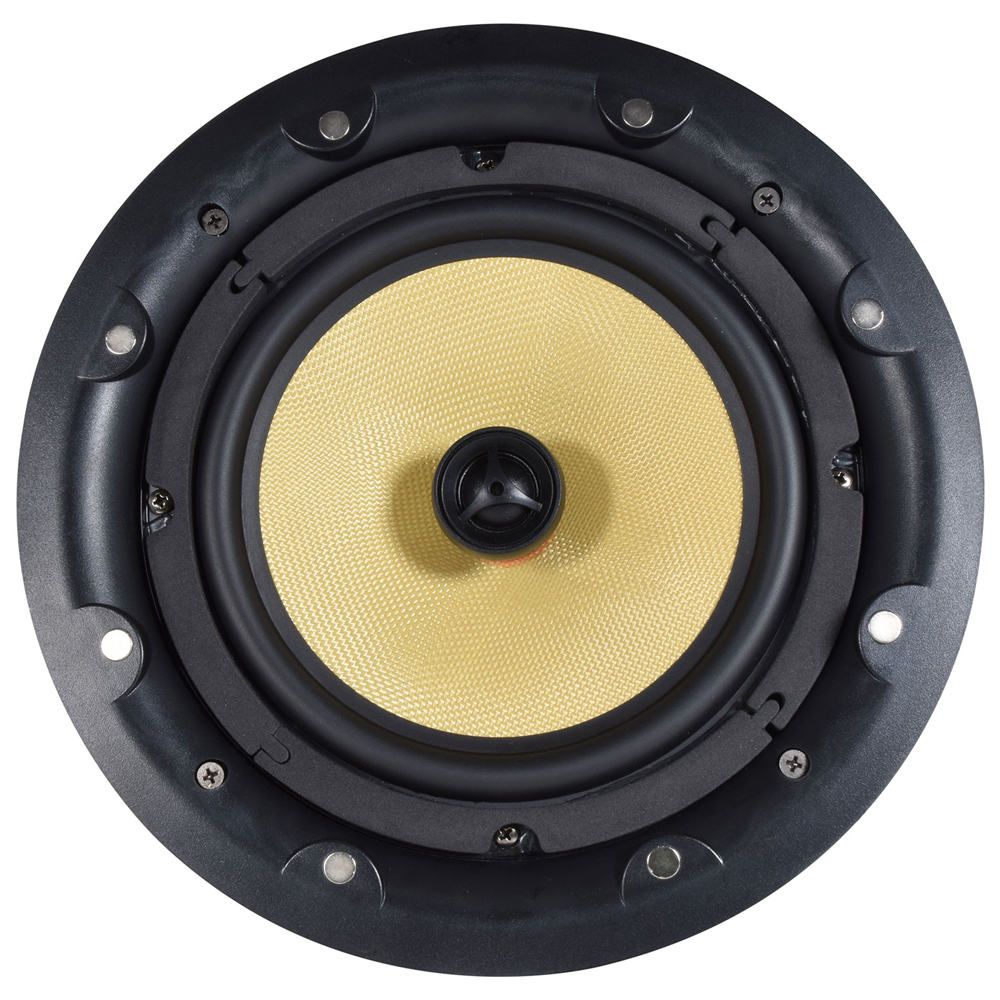

Adastra KV8 Ceiling Speaker

Adastra KV8 8” 40W 2-way low profile 8Ω ceiling speaker

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.

• Full 2-way passive crossover
• Magnetic low profile steel grille
• Heavy duty glass-aramid cone
• Braced ABS basket with integral wave guide
• Supplied individually
• Construction: ABS basket & powder coated steel grille
• Impedance: 8 Ohms
• Dispersion angle: 120°
• HF driver: 25mmØ (1″) ASV diaphragm
• Power handling : max: 80W
• Main driver: 200mmØ (8″) glass-aramid diaphragm
• Magnet weight: 465g
• Power handling : rms: 40W
• Frequency response: 50Hz – 20kHz
• SPL @ 1W/1m: 90dB
• Max. SPL: 105dB
• Cutout: 255mmØ
• Mounting depth: 110mm
• Dimensions: 110 x 281mmØ
• Weight: 1.543kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
