Adastra LP5V Ceiling Speaker

Adastra LP5V 20w 5¼” 2-way low profile 100v line or 8Ω ceiling speaker

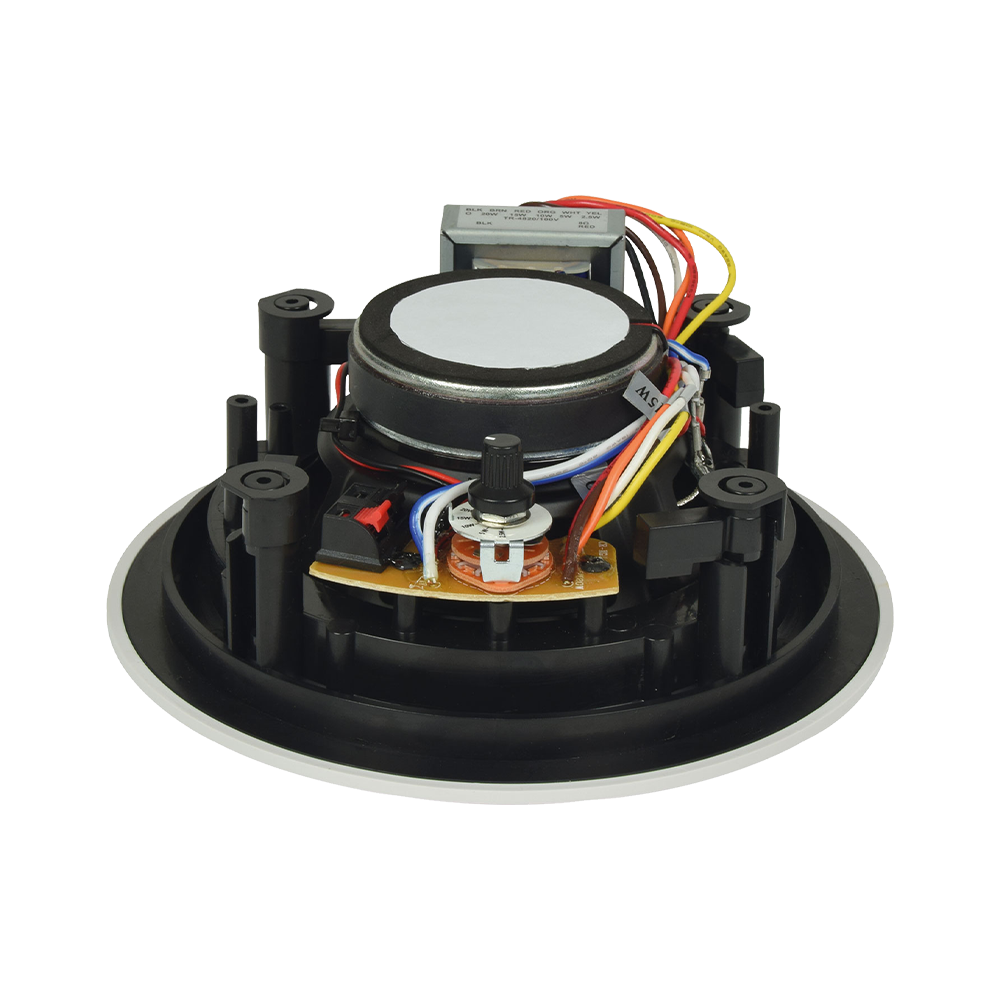

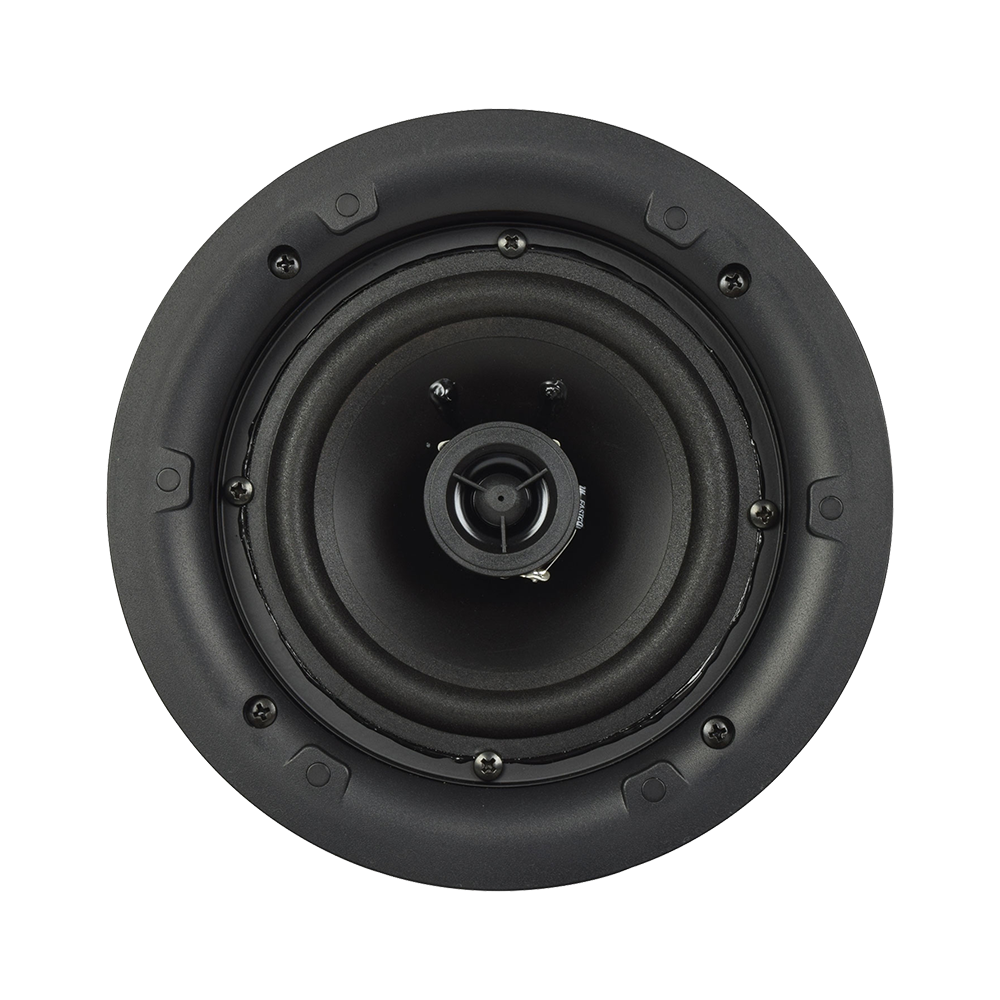

2-way ceiling speaker with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8 Ohms option. Mount into suspended or false ceilings using the 4 “dog-ear” mounts to achieve a discreet, high quality sound installation.

• Rotary selector switch for 100V line tappings or 8 Ohms
• Magnetic frameless grille
• Fitted with “dog-ear” mounts for fixing to suspended or false ceilings
• Discreet, low profile installation
• Grille can be painted to match decor
• Supplied singly

Specifications:

• Woofer: 133mmØ (5.25″)
• Tweeter: 38mmØ (1.5″)
• Frequency response: 85Hz – 20kHz
• Power max. : 8 Ohms: 80W
• Power rms : 8 Ohms: 40W
• Power rms : 100V line: 20W
• Cutout: 176mm
• Mounting depth: 84mm
• SPL @ 1W/1m: 84dB (±2dB)
• Tappings: 2.5, 5, 10, 15, 20W & 8 Ohms
• Dimensions: 86 x 203mmØ
• Weight: 1.23kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
