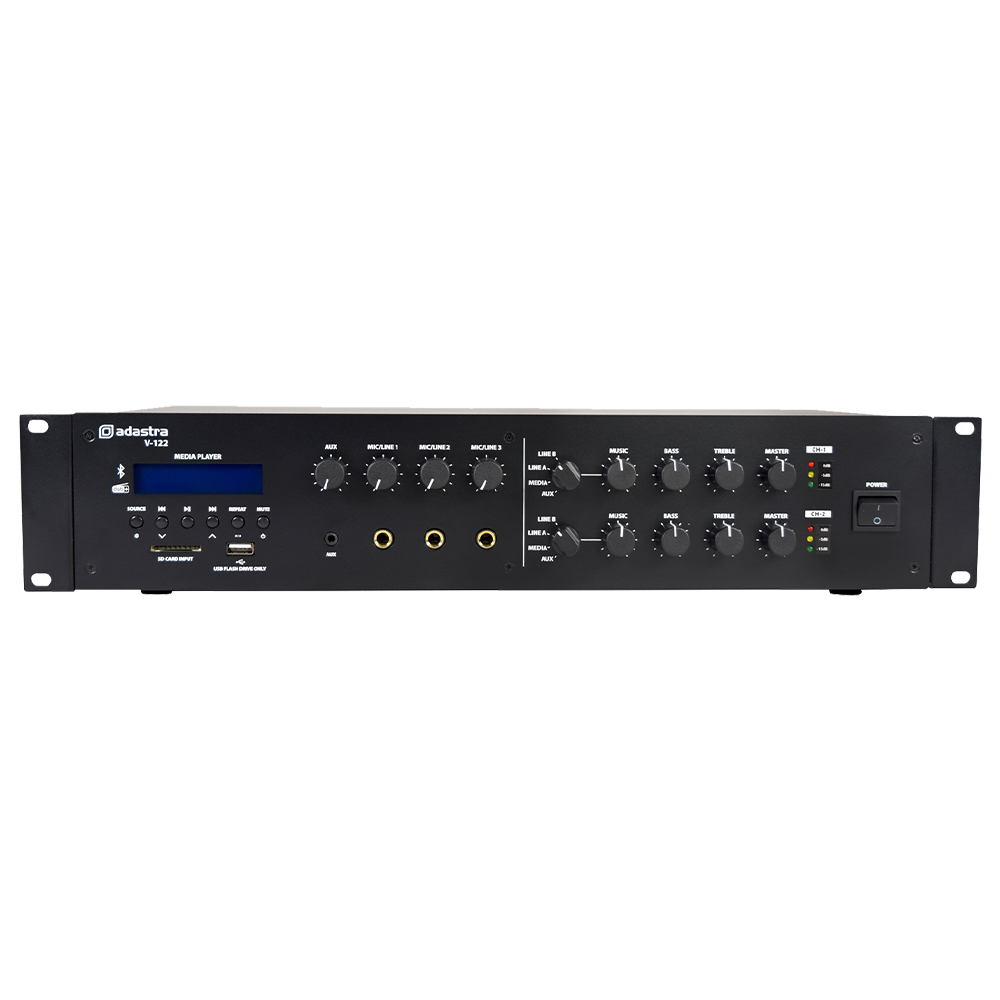

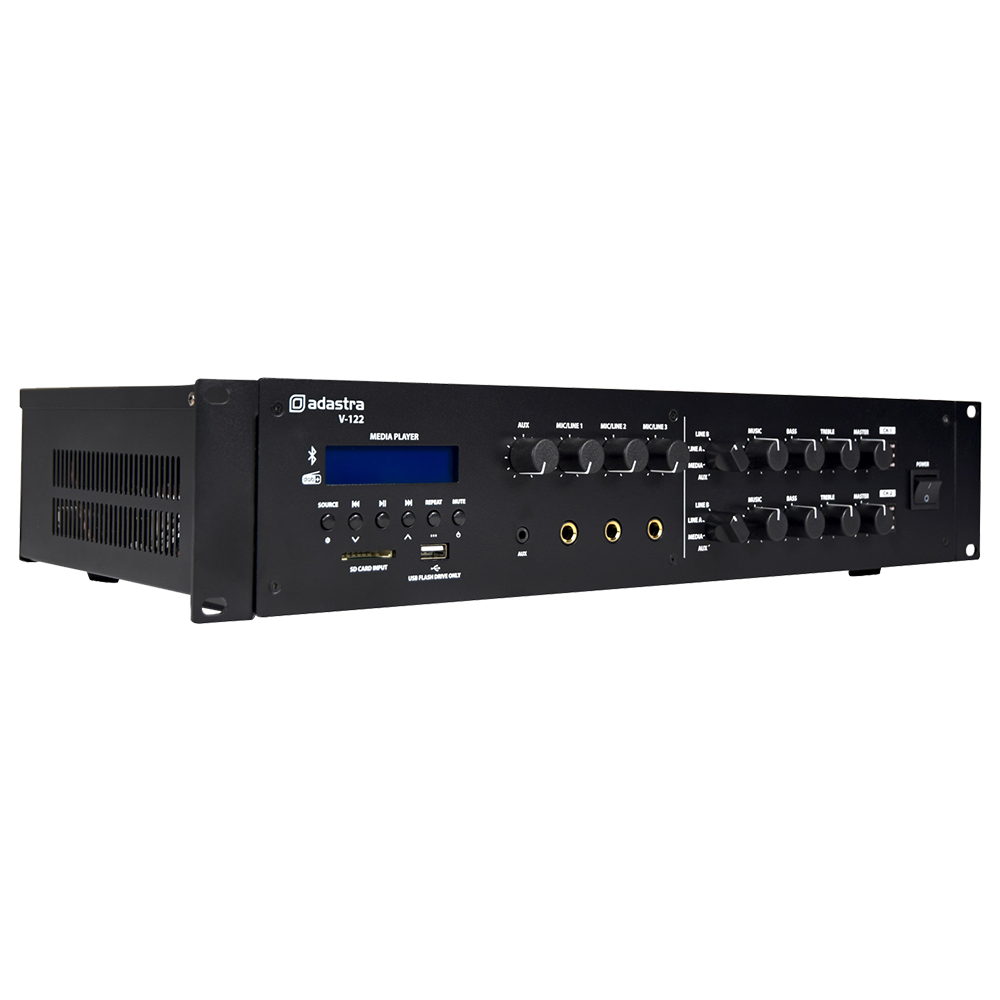

Adastra V-122 Mixer Amplifier with Bluetooth

Adastra V-122 dual zone 100v 2 x 120w mixer amplifier with Bluetooth and DAB+/FM and USB/SD media player

Fully-featured mixer-amplifier with class-D amplifier section, delivering 100V or low impedance output to 2 independant public address zones. Featuring a built-in audio player with Bluetooth® and DAB+/FM receiver, along with a USB/SD mp3 player for flexible and convenient playback of music or spoken information. Inputs include 3 balanced mic/line channels, which are live to both zones at all times, with switchable phantom power and selectable priority for channel 1. Additionally, a rotary selector for each zone can switch between 2 unbalanced line inputs, an auxiliary line input or the internal audio player section. Speaker connections are provided on screw terminal blocks with options for 100V line or 4-8 Ohm low impedance loads. Each zone also has an unbalanced line output if further amplifiers are to be connected to expand the system. Multiple input connections and convenient playback options make this amplifier a complete problem-solver for installers and venue owners, providing flexible and dependable control for distributed audio in commercial and leisure environments

• Do not connect more that two 8Ω loudspeakers to the 8Ω output on any output channel of this amplifier
• Bluetooth, DAB+/FM and USB/SD media player – PLEASE NOTE that for good FM reception an external FM aerial will be required
• 3 mono inputs and 1 selectable stereo source
• 2 independent 100V or low impedance zones
• Bass & Treble EQ for each zone
• Front jacks or rear combo and screw inputs for channels 1-3
• Power supply: 170-264Vac, 50Hz (IEC)
• Power output: 2 x 120W rms
• Audio source: DAB+/FM/USB/SD/BT audio player
• Inputs: 3 x mic/line (Jack/XLR/screw), 2 x line (RCA), Aux (RCA/3.5mm)
• Zone outputs: line: 2 x RCA
• Zone outputs: speaker: 2 x terminal outputs 100V/8 Ohms/4 Ohms/COM
• Phantom power: +20V switchable to XLR inputs
• Input impedance: 1k Ohms (mic/line)
• Input sensitivity: -11dB (line), -46dB (mic)
• THD: <0.76% @ 1kHz
• SNR: 84dB (line), 82dB (mic)
• Bluetooth version: 5.0
• Frequency response: 100Hz – 20kHz
• Dimensions: 482 x 273 x 88mm (feet removed)
• Weight: 6.76kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
